Degassing Cold Feed Rubber Extruder with Complete Specifications

Brand Name : SFC

Model Number : SJ-900

Certification : CE, ISO

Place of Origin : Qingdao, China

MOQ : 1 set

Price : US$15,000.00-24,000.00

Payment Terms : T/T,L/C

Supply Ability : 60set/Month

Delivery Time : 25-35 days

Packaging Details : Safety Wood or Plywood Crates Packing

Contact Now

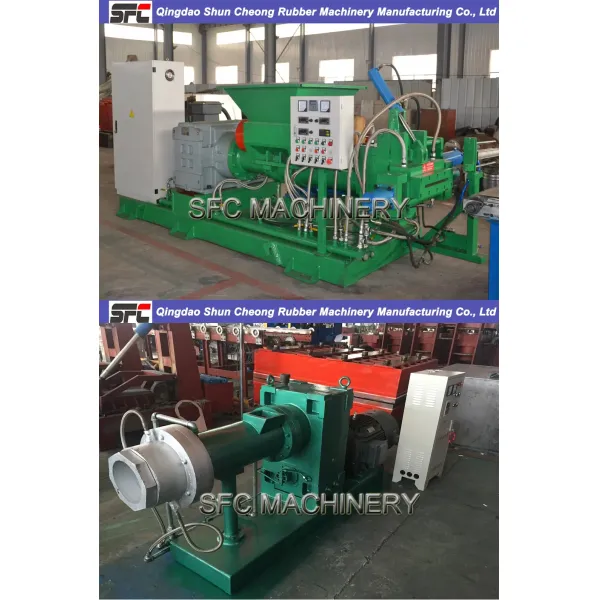

Cold Feed Rubber Extruder with Complete Specifications
Product Overview
Professional degassing cold feed rubber extruder designed for EPDM seals production with comprehensive specifications and advanced features.
Basic Information
Model: SJ-900 (Customized options available)
Automation Grade: Automatic
Structure: Horizontal
Product Line: Rubber Extruder Production Line
L:D Ratio: 20:1
Screw Diameter: 120mm
Motor Power: 90kw
Origin: Qingdao, China
Production Capacity: 50 sets/Month
Degassing Cold Feed Rubber Extruder with Complete Specifications
Production Process
EPDM rubber seals production line process: Raw materials → Mixer → Rubber Mixing Mill → Extruder → Vulcanizing Box cooling and traction → Packaging and storage.
Key Features
  • Forced feeding rollers with workspace-optimized operating system design
  • Humanized design reduces labor intensity
  • ISO9001:2008 Quality Management System Certified
  • SGS and CE Certified products
  • Overall welded base with compact, safe, and reliable structure
  • Quick installation and commissioning
Component Specifications
  • Gear Reducer: Rectangle hardened reducer with 6-grade transmission accuracy, high-strength low carbon alloy steel, carburizing quenching and tooth grinding
  • Screw: 38CrMoALA material with nitriding treatment, wear-resistant, long life, high strength. Unique five-phase thread structure design
  • Barrel: Cold/hot water circulation adjustment pumps or mold temperature device for temperature control
  • Motor: Inverter control with adjustable speed
  • Base: Steel plate welded structure, stress-relieved after annealing
Applications
Extrusion and vulcanization of various seals including EPDM and butyronitrile seals.
Technical Parameters
Model SJ-75X20D SJ-90X20D SJ-120X20D SJ-150X20D
Screw Diameter (mm) 75 90 120 150
L:D Ratio 20:1 20:1 20:1 20:1
Screw Rotate Speed (r/min) 5-65 5-55 5-55 5-55
Max. Extruding Capacity (kg/h) 120 320 600 800
Main Motor Power (kw) 37 55 110 150
Speed Adjustment Mode Variable Frequency Speed Regulation
Weight (kg) 1700 3200 5200 6500
Degassing Cold Feed Rubber Extruder with Complete Specifications Degassing Cold Feed Rubber Extruder with Complete Specifications
Frequently Asked Questions
Quality Control: Comprehensive quality control throughout production. Every machine fully assembled and tested before shipment.

Quality Guarantee: One-year warranty using world-famous brand components.

Overseas Installation: Available with technical support. Small machines: 2-3 days, production lines: ~30 days.

Product Assurance: Commitment to delivering quality machines as confirmed in orders. Proven track record with world-renowned manufacturers.

Factory Location: Qingdao City, Shandong province, China. Airport pickup service available.
Degassing Cold Feed Rubber Extruder with Complete Specifications
We can design various kinds of non-standard rubber machinery according to your requirements.
Degassing Cold Feed Rubber Extruder with Complete Specifications Degassing Cold Feed Rubber Extruder with Complete Specifications Degassing Cold Feed Rubber Extruder with Complete Specifications Degassing Cold Feed Rubber Extruder with Complete Specifications
