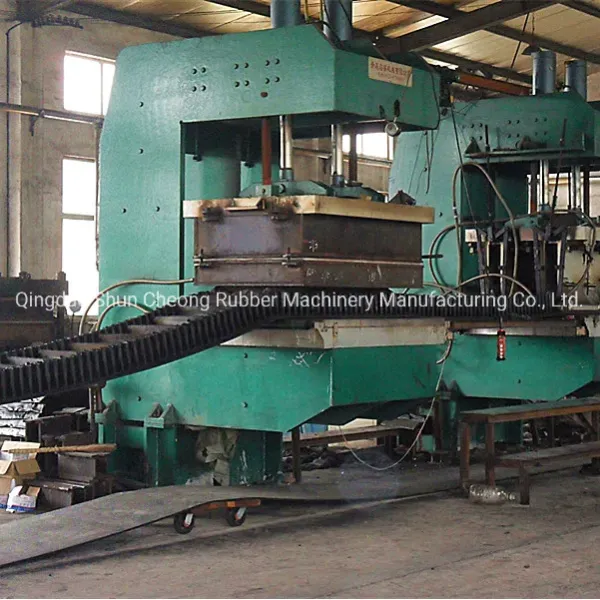

Sidewall Belt Vulcanizing Press Machine
Professional conveyor belt vulcanizing press for steel cord and fabric core belt production with advanced automation and PLC control systems.
Technical Specifications
| Model Number |
XLB-Q1200X2500X1 |
| Certifications |
CE, ISO 9001:2015, SGS |
| Condition |
New |
| Automatic Grade |
Automatic |
| Structure |
Horizontal |
| Total Pressure |
7.50 MN (750t) |
| Platen Size |
1200 * 2500 mm |
| Daylight |
400 mm |
| Number of Daylights |
1 |
| Piston Stroke |
400 mm |
| Main Motor Power |
9.5 kW |
| Overall Dimensions |
2560 * 1700 * 2780 mm |
| Production Capacity |
50 Sets/Year |
| Origin |
China |
Product Overview
This conveyor belt vulcanizing press is designed for fabric core (nylon, canvas, etc.) and steel cord conveyor belt production lines. The machine features compact construction and high automation levels for processing large-type conveyor belts.
Key Features
- Compact body design with high automation capabilities
- Suitable for common rubber, nylon, steel cord, and flame-retardant conveyor belts
- Frame structure with micro fabrication using superior-quality materials for corrosion resistance
- Convenient maintenance with stable working pressure and easy adjustment
- PLC-controlled system for multi-program automatic control including temperature detection and adjustment
- Reduces labor intensity and enhances production efficiency
- Customizable configurations available based on customer requirements
Available Models Comparison
| Model |
XLB-DQ1200*1200x2 |
XLB-DQ1300*2000*1 |
XLB-Q1200*2500*1 |
XLB-Q1500*2000*1 |
XLB-Q2000*3000*1 |
XLB-Q1400*5700*1 |
| Total Pressure (MN) |
315t |
560t |
750t |
1000t |
1800t |
2800t |
| Plate Size (mm) |
1200*1200 |
1300*2000 |
1200*2500 |
1500*2500 |
2000*3000 |
1400*5700 |
| Daylight (mm) |
200 |
400 |
400 |
400 |
400 |
400 |
| Layer Number |
2 |
1 |
1 |
1 |
1 |
1 |
| Piston Stroke (mm) |
400 |
400 |
400 |
400 |
400 |
400 |
| Plate Unit Area Pressure |
22 |
21.5 |
25 |
33.5 |
30 |
35 |
| Main Motor Power (kW) |
3 |
8 |
9.5 |
11 |
26 |
43.5 |
| Overall Dimensions (mm) |
1685*1320*2450 |
2000*1860*2500 |
2560*1700*2780 |
2810*1550*3325 |
2900*3200*2860 |
2400*5800*3600 |
| Weight (kg) |
9500 |
17000 |
20000 |
24000 |
66000 |
110000 |
Manufacturer Profile
Qingdao Shun Cheong Rubber Machinery Manufacturing Co., Ltd is a high-tech backbone enterprise specializing in rubber machinery production, located in Huangdao New District, Qingdao City. The company holds ISO9001:2015 quality management system certification, European Union CE certification, and Switzerland SGS certification.
Product Range
Our products serve multiple industries including tire manufacturing, rubber conveyor belt production, various rubber products, tire refurbishing, and waste tire recycling.
Main Equipment
Rubber Kneader, Rubber Mixing Machine, Rubber Vulcanizing Press, Batch Off Cooler, Rubber Calender, Waste Tire Crusher, Rubber Extruder, Rubber Strainer, and more.
Global Reach
Our products are exported to over 50 countries and regions including Britain, Switzerland, USA, Germany, Brazil, Singapore, Malaysia, India, Russia, Ukraine, Uzbekistan, and Kazakhstan, earning consistent praise and long-term cooperation from domestic and international customers.
Quality Commitment
- All components undergo strict quality inspection before storage
- Comprehensive overload testing before shipment (24-hour pressure testing at 1.25* rated pressure for vulcanizing presses)
- Free technical support for all products
- 3-year warranty for main parts, 1-year warranty for wearing parts
- Immediate remote support with on-site engineer dispatch if needed
- Factory visits and production consultation available for customers
Customer Services
- Custom machine design with engineering drawings for customer confirmation
- Production progress photos provided during manufacturing
- Complete documentation including packing list, commercial invoice, and bill of lading
- Free technical documentation: foundation drawings, installation guides, user manuals, and part drawings
- Overseas engineer services and operator training
Frequently Asked Questions
What does your factory do regarding quality control?
We implement comprehensive quality control throughout the entire production process. Every machine is fully assembled and carefully tested before shipment.
What's the machine quality guarantee?
Quality guarantee period is one year. We use world-famous brand components to ensure optimal machine performance and reliability.
Are you able to give installation and commissioning overseas? How long will it take?
Yes, we provide overseas installation and technical support services (customer covers installation costs). Small machines typically take 2-3 days, while large production lines require about 30 days.
How can I trust you to deliver the right machine as I ordered?
We guarantee delivery of high-quality machines exactly as discussed and confirmed in your order. Our company culture is built on innovation, quality, integrity, and efficiency, with established partnerships with world-renowned rubber production manufacturers.
How can we visit your factory?
We are located in Qingdao City, Shandong province, China, near Qingdao Jiaodong Airport. We provide airport pickup services for visiting customers.
